Designed for Tomorrow's Aerospace Applications
The 3000 Series commercial pumps were developed utilizing AMETEK PDT’s best-in-class aerospace heritage and the latest technology. Our modular design provides the flexibility to accommodate a myriad of different performance, fluid and power options.
- Designed for the power formats of modern aircraft
- Comprehensive operating point coverage for nearly any application
- Variable speed control
- Operates with a variety of fluids, including PAO, EGW, PGW, and fuels
- Reduced lead times
- No Development NRE: Already designed for tomorrow’s applications
Download a Datasheet below
3000 Series Pump Specifications
| Model No |
Rated Flow |
Rated Pressure Rise (PSID) |
Maximum Power Consumption (W) |
Power Source |
Fluid Configurability |
Weight Estimate (lbs) |
| 3001-2 |
5 |
150 |
1500 |
270 VDC |
Compatible with water based, oil, or fuels |
9.4 |
| 3002 |
20 |
70 |
1500 |
270 VDC |
Compatible with water based, oil, or fuels |
9 |
| 3003 |
50 |
100 |
5000 |
270 VDC |
Compatible with water based, oil, or fuels |
18 |
| 3003-1 |
100 |
50 |
5000 |
270 VDC |
Compatible with water based, oil, or fuels |
18 |
| 3005 |
3 |
120 |
600 |
28 VDC |
Compatible with water based, oil, or fuels |
6.5 |
| 3011 |
8.5 |
50 |
600 |
28 VDC |
Compatible with water based, oil, or fuels |
6.5 |
| 3014 |
1.5 |
75 |
250 |
28 VDC |
Compatible with water based, oil, or fuels |
2.2 |
| 3009 |
3.5 |
35 |
250 |
28 VDC |
Compatible with water based, oil, or fuels |
2.2 |
Performance

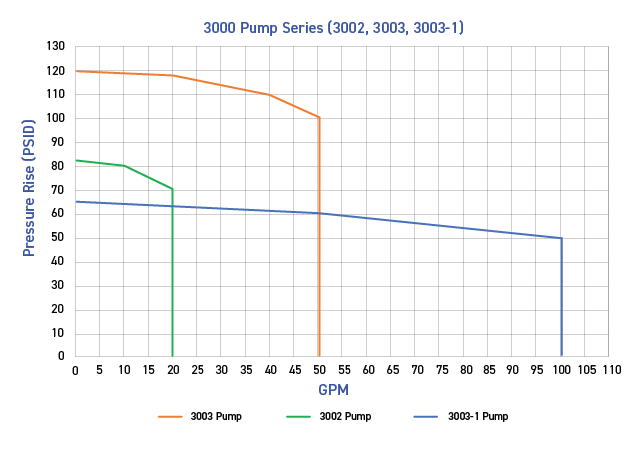

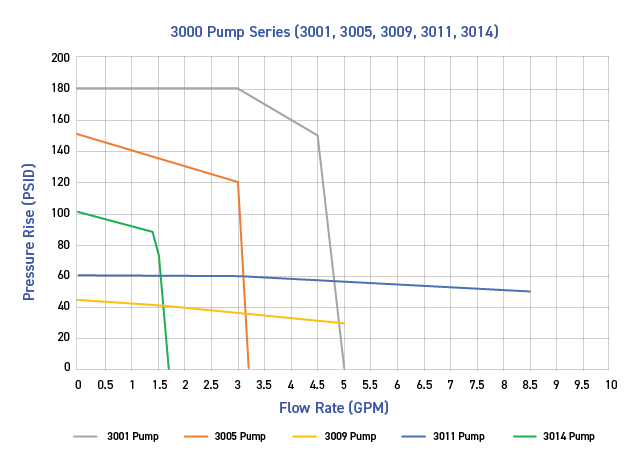

The 3000 Series commercial pumps are all variable speed BLDC motor driven pumps and are capable of any operating point within the maximum pump capability plots shown for each pump below.
