Fluid Engineering for Space

Chillin' on Mars

Space
International Space Station - PDTPacific Design Technologies has a long history of participation on space programs, having provided Mechanically Pumped Fluid Loop (MPFL) systems and components for three robotic missions to Mars and two experimental platforms on the International Space Station. In addition, PDT has been selected to supply MPFL hardware for the upcoming Mars 2020 mission by NASA’s Jet Propulsion Laboratory. PDT has also designed and produced unique circulation pumps for use with ultra-pure water for future space-based fuel cell power systems. The critical material, cleanliness, reliability and quality challenges associated with long duration space missions are familiar territory for the Pacific Design Technologies team.  The following are a sample of PDT’s active and past programs in the space market.

Mars Science Laboratory
PDT provided threMSL Pump Family - PDTe pump packages for the mission, including the Rover Integrated Pump Assembly which is installed in the Curiosity rover. These three components circulate liquid coolant to maintain critical electronics on board the spacecraft and rover within a tight temperature range. The use of a Mechanically Pumped Fluid Loop (MPFL) system for this mission allows the spacecraft designers greater flexibility in component placement and reduces overall power consumption compared to traditional electric heating systems.



Mars 2020Mars 2020 rover - PDT
PDT has been selected to provide one flight set of hardware for the upcoming Mars 2020 mission, currently under development by NASA-Jet Propulsion Laboratory. PDT’s equipment will consist of the same articles provided for the Mars Science Laboratory project, including the Rover Integrated Pump Assembly used on the Curiosity rover. For the Mars 2020 project, a similar rover will be landed, but it will be equipped with a new instrumentation suite designed to meet the science objectives of the mission.

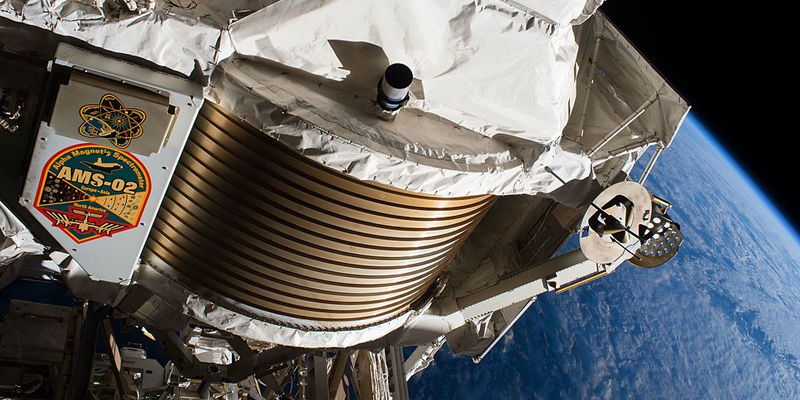

AMS-02 Alpha Magnetic Spectrometer
AMS-02 Alpha Magnetic Spectrometer - PDT

In service on the International space station since May 19, 2011, the AMS-02 Alpha Magnetic Spectrometer particle detector is being used by an international team to evaluate high energy cosmic rays for evidence of dark matter, antimatter and other phenomena that cannot be detected by traditional telescopes. For this important science project, PDT provided a set of Mechanically Pumped Fluid Loop (MPFL) hardware which is used in a unique thermal control system to maintain the temperature of the sensitive detectors which are at the heart of the AMS-02 instrument.





Robotic Refueling Mission (RRM) DemonstratorPDT Robotic Refueling Mission Pumps and Accumulators
PDT provided a set of pumps and accumulation aircraft solutions to NASA-Goddard Flight Center that were used for on-orbit demonstrations of advanced robotic satellite refueling technologies. The Robotic Refueling Mission is a multi-phased technology demonstration program using the unique platform of the International Space Station to test tools, technologies and techniques to refuel and repair satellites in orbit.





Mars Exploration Rovers and Mars Pathfinder
Mars Pathfinder (Sojourner)PDT Mars Rover Integrated Pumping UnitThe success of the Mars Exploration Rovers (Spirit and Opportunity) and the Mars Pathfinder (Sojourner) provided the technical foundation which facilitated the implementation of the larger and more capable Mars Science Laboratory (Curiosity) program. For both programs, PDT provided an Integrated Pumping Unit which was used during the seven month transit from Earth to Mars to maintain temperature control of sensitive spacecraft electronic systems.
